ABL9 blood gas analyser

Clever made simple

  • Request info
    Find out more about blood gas testing at the point of care with the ABL9 blood gas analyser
    Contact Info
    Workplace Details
    By submitting this form, I acknowledge that I have reviewed and understood the data privacy notice.

    All fields must be filled!

  • Download brochure
    I would like to download the ABL9 brochure

    Contact Info
    By submitting this form, I acknowledge that I have reviewed and understood the data privacy notice.

    All fields must be filled!

  • Simple, reliable, affordable
  • On-screen step-by-step user guidance
  • For settings with few tests per day

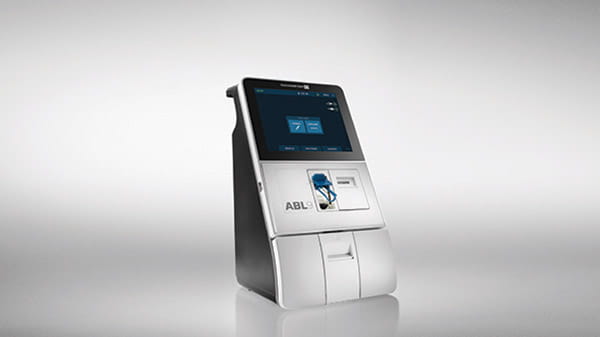

The ABL9 blood gas analyser is specially designed for critical care environments running only a few tests per day.

It’s developed with ease of use in mind, fits in most settings due to its small footprint.

Using the on-screen step-by-step user guidance, you can easily measure patient samples on the ABL9 analyser and receive fast results on acid-base balance as well as oxygen and electrolyte status.

In a matter of seconds, you have the input you need to make the right diagnostic decisions for your critically ill patient.

Parameters measured

Blood gases:
pH

Potential of hydrogen

The degree of acidity or alkalinity of any liquid (including blood) is a function of its hydrogen ion concentration [H+], and pH is simply a way of expressing hydrogen ion activity. The relationship between pH and hydrogen ion concentration is described thus:

pH = -log aH+
where aH+ is hydrogen ion activity.

Low pH is associated with acidosis and high pH with alkalosis [1,2].

Read more

  1. CLSI. Blood gas and pH analysis and related measurements; Approved Guidelines. CLSI document CA46-A2, 29, 8. Clinical and Laboratory Standards Institute, 940 West Valley Road, Suite 1400, Wayne, Pennsylvania 19087-1898 USA, 2009
  2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook
, pCO2

Partial pressure of carbon dioxide

Carbon dioxide (CO2) is an acidic gas; the amount of CO2 in blood is largely controlled by the rate and depth of breathing or ventilation. pCO2 is the partial pressure of CO2 in blood. It is a measure of the pressure exerted by that small portion (~5 %) of total CO2 that remains in the gaseous state, dissolved in the blood plasma. pCO2 is the respiratory component of acid-base balance and reflects the adequacy of pulmonary ventilation. The severity of ventilator failure as well as the chronicity can be judged by the accompanying changes in acid-base status [1,2].

Read more

  1. Higgins C. Parameters that reflect the carbon dioxide content of blood. www.acutecaretesting.org Oct 2008.
  2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014
, pO2

Partial pressure of oxygen

The amount of oxygen in blood is controlled by many variables, e.g. ventilation/perfusion. pO2 is the partial pressure of oxygen in a gas phase in equilibrium with the blood. pO2 only reflects a small fraction (1 – 2 %) of total oxygen in blood that is dissolved in blood plasma [1]. The remaining 98 – 99 % of oxygen present in blood is bound to the hemoglobin in the erythrocytes. pO2 primarily reflects the oxygen uptake in the lungs. [2]

Read more

1. Wettstein R, Wilkins R. Interpretation of blood gases. In: Clinical assessment in respiratory care, 6th ed. St. Louis: Mosby, 2010.
2. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

Hematocrit:
Hct

Hematocrit


Hematocrit, the ratio between the volume of erythrocytes and the volume of whole blood.

Electrolytes:
cCa2+

Calsium

The calcium ion (Ca2+) is one of the most prevalent cations in the body, where approximately 1 % is present in the extracellular fluid of blood. Ca2+ plays a vital role for bone mineralization and many cellular processes, e.g. contractility of the heart and the skeletal musculature, neuromuscular transmission, hormone secretion and action in various enzymatic reactions such as, e.g. blood coagulation. [1]

Read more

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, cCl-

Chloride

Chloride (Cl-) is the major anion in the extracellular fluid and one of the most important anions in blood. The main function of Cl- is to maintain osmotic pressure, fluid balance, muscular activity, ionic neutrality in plasma, and help elucidate the cause of acid-base disturbances. [1]

Read more

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

, cK+

Potassium

Potassium (K+) is the major cation in the intracellular fluid, where it has a 25 - 37-fold higher concentration (∼150 mmol/L in tissue cells, ∼105 mmol/L in erythrocytes) than in the extracellular fluid (∼4 mmol/L) [1, 2]. K+ has several vital functions in the body, e.g. regulation of neuromuscular excitability, regulation of heart rhythm, regulation of intracellular and extracellular volume and acid-base status. [3]

Read more

1. Burtis CA, Ashwood ER, Bruns DE. Tietz textbook of clinical chemistry and molecular diagnostics. 5th ed. St. Louis: Saunders Elsevier, 2012.
2. Engquist A. Fluids/Electrolytes/Nutrition. 1st ed. Copenhagen: Munksgaard, 1985.
3. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.



, cNa+

Sodium

Sodium (Na+) is the dominant cation in the extracellular fluid, where it has a 14-fold higher concentration (∼140 mmol/L) than in the intracellular fluid (∼10 mmol/L). Na+ is a major contributor of the osmolality of the extracellular fluid and its main function is largely in controlling and regulating water balance, and maintaining blood pressure. Na+ is also important for transmitting nerve impulses and activating muscle concretion. [1]

Read more

1. Acute care testing handbook. Radiometer Medical ApS, 2700 Brønshøj, Denmark, 2014. As accessed on https://www.radiometer.com/en/knowledge-center/handbooks/acute-care-testing-handbook.

Close
You must give your consent to marketing cookies to view this content.
Click here to renew consent

Your blood gas analyser designed for easy blood gas testing at the point-of-care

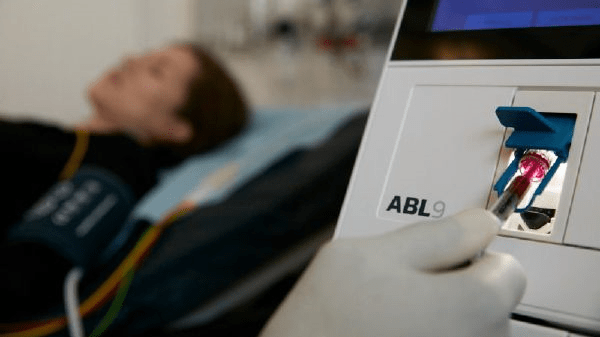

The ABL9 blood gas analyser provides you with reliable results in as little as 77 seconds on 70 microlitres of blood. Radiometer’s engineers created a clever and simple blood gas analyser that you can easily use.

Watch the video to see how the ABL9 analyser has been designed to help you improve patient care.

Find out more about blood gas testing at the point-of-care with the ABL9 blood gas analyser

Get in touch with us to learn how the ABL9 blood gas analyser is intuitive, fast and affordable.

We’ll contact you by phone or email as soon as possible.

Get in touch

Related products and solutions

ABL90 FLEX PLUS blood gas analyser

Compact blood gas analyser designed for point-of-care testing in the ED, ICU, NICU. Get results in 35 seconds on 19 parameters incl. creatinine and urea on 65 µL of blood.

More information

ABL800 FLEX blood gas analyser

Benchtop analyser for your high volume needs: High throughput, automated sample handling. Up to 3 blood gas samples in one workflow.
More information

Related knowlegde sources

Guide to blood gas analysis

In blood gas analysis, you assess the acid-base status of a patient with a respiratory or metabolic disorder. The videos will guide you in understanding blood gas analysis.

Read more

Get the acute care testing handbook

Download the free guide on blood gases and other critical parameters in acute care testing.
Download now

Scientific knowledge site

Acutecaretesting.org is a site that combines scientific literature with daily practice on topics relevant to acute care testing.
Visit the site
